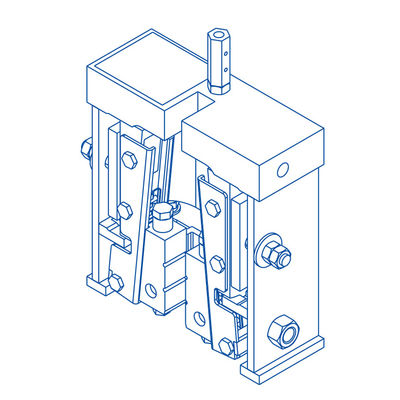

600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts

600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts

ภาพใหญ่ :  600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: SUNNY
ได้รับการรับรอง: CE,ISO9001
หมายเลขรุ่น: SN-SG-HN1600
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1SET
ราคา: $50
รายละเอียดการบรรจุ: กล่องไม้
เวลาการส่งมอบ: 7 ~ 15 วัน
เงื่อนไขการชำระเงิน: L/C, T/T, Western Union
สามารถในการผลิต: 10000 ชิ้น/เดือน
รายละเอียดสินค้า
ชื่อ: อุปกรณ์ความปลอดภัยแบบก้าวหน้าของลิฟต์ ความกว้างของรางนำทาง: 10/15.88/16มม
พี+คิว: 600-1600 กก ความเร็วในการจัดอันดับ: 0.4-1.00M/วินาที
ใช้งานได้: อะไหล่ลิฟต์ ประเภทธุรกิจ: ผู้ผลิต
เวลารับประกัน: 12 เดือน การบรรจุหีบห่อ: บรรจุในกล่อง
แบบอย่าง: อุปกรณ์ความปลอดภัยแบบก้าวหน้าของลิฟต์ พิมพ์: อุปกรณ์ความปลอดภัยแบบก้าวหน้าของลิฟต์
เน้น:

P+Q elevator safety gear

,

progressive elevator safety gear

,

600-1600kg elevator safety gear





600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts





Rated Speed

(m/s)

Acting Speed of Governor

(m/s)

System Quality

Permitted P+Q

(kg)

Rail Width

(mm)

Certification Rail Status

Dimensions

(Fixed Installation) mm

0.40-1.00 0.46-1.65 600-1600 10/15.88/16 GB Dry/Lubricated 176x186x60





600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts 0



600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts 1



600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts 2



600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts 3



600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
